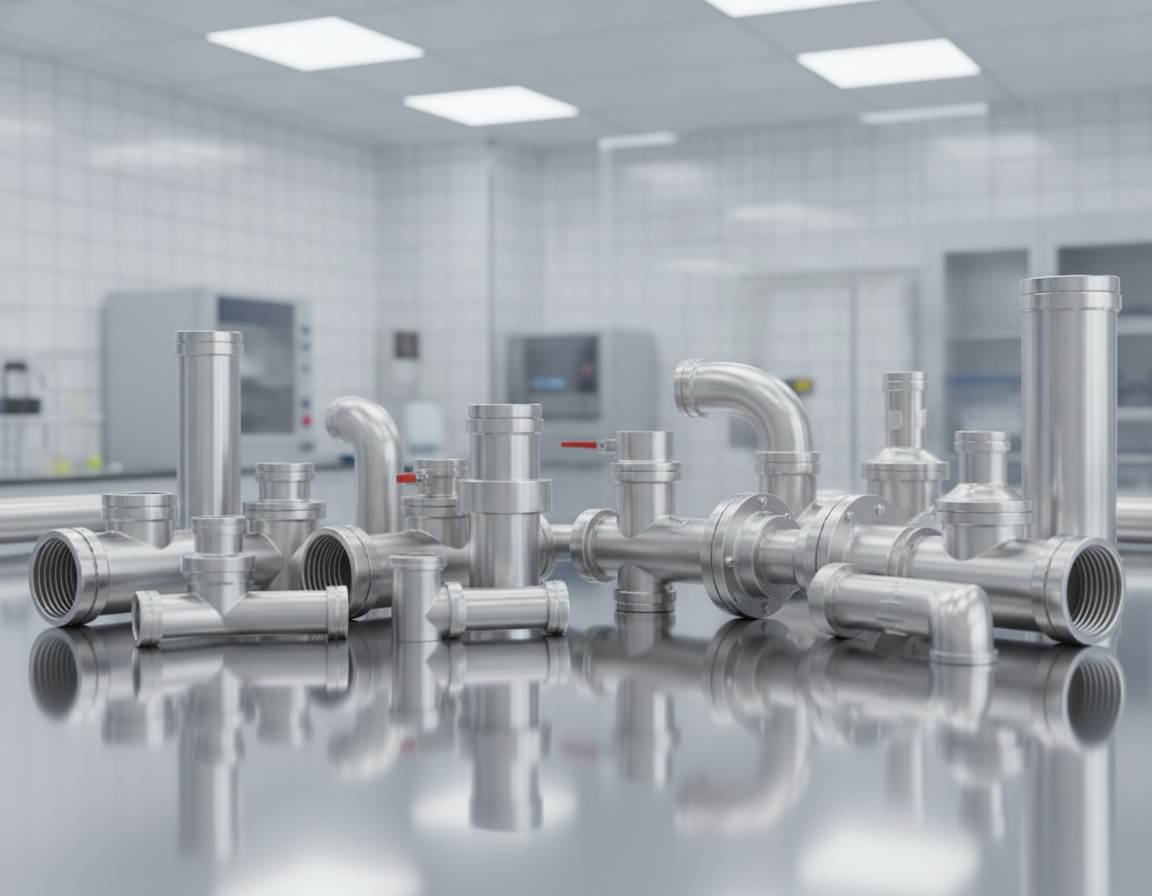

Across many industries, stainless steel sanitary pipe fittings are critical for keeping process systems hygienic. These components, including ferrules, clamps, sanitary valves, and fittings, are built to keep fluid paths clean. They help minimize contamination risks and make cleaning easier.
Tri Clover Fittings
The choice of Hygienic Fittings and Ss Sanitary Fittings has a direct effect on product safety, system uptime, and adherence to regulations. The material grade, surface finish, and compatibility of connections are key factors. They determine the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are essential for operations teams to select the right parts. Brands such as CSI and distributors like Installation Parts Supply offer useful purchasing information. Their catalog listings, lead times, and customer reviews can support purchasing decisions for Sanitary Valves And Fittings.
Important Takeaways
- Stainless Steel Sanitary Pipe Fittings are necessary for contamination control in clean systems.
- Material grade and surface finish impact cleanability and corrosion resistance.
- Compatible Hygienic Fittings help reduce downtime during upgrades, changeovers, and maintenance.
- Supplier catalogs and reviews from CSI and Installation Parts Supply support reliable sourcing.
- Choosing the right Sanitary Valves And Fittings supports product quality and regulatory compliance.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems rely on components designed for safety and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features limit contamination and support clean-in-place and sterilize-in-place procedures.
Definition And Purpose Of Sanitary Fittings
Sanitary fittings, often called hygienic fittings, are built to create crevice-free connections. That design reduces bacterial growth and helps maintain product purity during transfer and processing. Their design makes possible faster cleaning while reducing cross-contamination risk.
Industries That Use Hygienic Fittings
Food processors rely on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use them to preserve flavor and shelf life. Pharmaceutical facilities choose fittings that meet strict regulatory and validation requirements.
Biotech facilities need validated sanitary connections for fermentation, cell culture, and bioprocessing. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Is Preferred For Sanitary Applications
Stainless steel is commonly selected for its corrosion resistance, mechanical strength, and cleanability. Grades like 304 and 316L resist chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components limit bacterial growth and extend service life under aggressive cleaning. Tri Clover Sanitary Fittings and other standardized interfaces streamline the assembly and maintenance of robust hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
Stainless steel sanitary pipe fittings are essential in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish limits contamination risk and makes cleaning easier. This section covers common stainless grades, component families, and surface finish options for hygienic performance.
Materials And Grades Commonly Used
Type 304 stainless steel is known for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L provides superior resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L early in design simplifies procurement of SS Sanitary Fittings and related parts.
Sanitary Fitting Product Types And Functions
Ferrules act as the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings help create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings reduces downtime and leak risks.
Surface Finish And Cleanability Requirements
Surface roughness directly affects how residues cling to metal surfaces. A 32RA internal finish is a common specification that balances cost, cleanability, and food/beverage performance.
Electropolishing further improves the metal and enhances passivity. This treatment helps minimize microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes more dependable.
| Part | Common Material | Standard Finish | Typical Application |
|---|---|---|---|
| Ferrules for welded assemblies | 304 / 316L stainless | 32RA internal/external finish | Pipe-end transitions and welded joints |
| Tri-Clamp two-piece clamps | 316L preferred | 32RA finish or electropolished surface | Fast sanitary assembly and disassembly |
| Couplings and weld fittings | 304 / 316L | 32RA, electropolished optional | Welded joins and directional changes |
| Sanitary flexible-line fittings | 316L common | Electropolished for product contact | Hose-to-pipe transfer connections |
| Hygienic valves and fittings | 316L for wetted parts | Smooth polished flow paths | Cleanable flow control in process lines |
Tri Clover Fittings, Tri-Clamp Fittings Catalog, And Triclover Fitting Options
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. DIN 32676 and DIN 11864-3A define ferrule face geometry and clamp interfaces. This helps ensure sanitary lines remain leak-free and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs feature clamps, ferrules, and gasket sets, sized in inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting entry should include OAL, ID/OD finish, and compatible gasket material. This supports the correct part is chosen at the time of order.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps may use a 304 stainless body with brass nuts to balance strength, corrosion resistance, and tightening performance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material affects both longevity and cleaning performance. 316L ferrules provide superior resistance to chlorides in harsh environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog makes Triclover Fittings replacement faster and helps minimize downtime. Seek suppliers that show detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
Sanitary Connections And Compatibility With CSI Sanitary Fittings
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The correct joint type is important for maintaining cleanability, efficiency, and reliability. This section will cover common connection styles, brand interchangeability, and customer feedback on supplier reliability.
There are multiple connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own pros and cons regarding assembly speed, cleanability, and leak risk.
Clamp connections are valued for their quick assembly and ease of disassembly for cleaning. Welded joints, on the other hand, provide the smoothest internal profile for cleaning-in-place CIP and sanitizing-in-place SIP processes. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings require matched ferrules and a secure Sanitary Coupling to prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings follow common standards such as Tri-Clamp and DIN, which generally supports interchangeability with other manufacturers. Steel & O’Brien offers spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can lead to corrosion or trap product residues.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI show consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When evaluating suppliers, consider lead times, documented quality, and after-sale support. Reliable shipping and clear spec sheets reduce downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Sanitary Connection | Best Use | Hygienic Cleanability | Compatibility Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Product-contact lines needing frequent disassembly | Easy cleaning when gasket and ferrules match | Strong interchangeability when standards, faces, and sizes align |
| Butt-Weld / Socket-Weld | Permanent process runs requiring smooth internal bores | Very high after proper polishing | Cross-brand fit depends on matching standards and dimensions |
| Threaded fitting connection | Low-risk applications away from product contact | Lower cleanability where threads contact process fluids | Less common in product-contact lines; verify material and surface finish |
| Flexible hose with sanitary ferrule | Flexible runs and transfer lines | Good if ferrule and clamp are matched | Compatibility depends on ferrule shape, gasket, and clamp match |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Choosing the right sanitary components involves a few focused steps. This guide helps match size, material, finish, and gasket type to process requirements. Use the checks below to reduce downtime and support hygienic performance.
Begin with size and designation. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is a critical part of sanitary fitting specification. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Many suppliers list 316L ferrules and fittings as standard choices for harsh service environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Assess pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure applications need reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final checks reduce costs. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Keeping sanitary connections clean and reliable is essential in hygienic systems. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Keeping detailed records of materials, finishes, and maintenance is essential for traceability and audits.
Correct assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Sanitary Weld Fittings guidance
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Routine Sanitary Maintenance
Run CIP and SIP cycles according to process requirements. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. After each maintenance activity, verify clamp torque, gasket seating, and alignment.
Troubleshooting frequent sanitary fitting issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can cause uneven compression and create leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, confirm the correct gasket material and durometer, and verify that groove dimensions match ferrule specifications.
Surface damage repair considerations
Surface damage such as scratches, pitting, or crevice corrosion can trap microorganisms. Minor scratches may be polished out and electropolished to restore the required Ra level. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Documentation and records
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records support regulatory compliance and expedite troubleshooting efforts.
| Service Task | Frequency | Main Step | Service Notes |
|---|---|---|---|
| Clamp torque verification | After installation and on a monthly schedule | Check with calibrated torque wrench | Reference the correct torque table for each coupling size |
| Gasket inspection and replacement | Every 3 to 12 months or when failure occurs | Inspect for cuts, hardening, extrusion | Replace with matching material and durometer |
| Ra and surface condition check | Every quarter or after welding | Check Ra values and look for surface defects | Electropolish or refinish if Ra exceeds hygienic specification |
| Weld profile inspection | After installation and annually | Check for undercut, porosity, discoloration, and profile | Rework and polish fittings when defects appear |
| CIP and SIP validation | According to each cleaning or sterilization cycle | Track time, temperature, chemistry, and concentration | Keep records for traceability and audits |
Where To Buy: Sanitary Fittings Catalogs, CSI Fittings, And Installation Parts Supply
Starting with a detailed catalogue review is essential. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, dimensional specifications, and material grade. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog makes matching gaskets and clamps easier during assembly.
Evaluate Csi Fittings by reading independent reviews, checking supplier lead times, and comparing published specifications. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. Prices reflect typical catalog entries and help set realistic budgets for procurement.
| Catalog Item | Nominal Size | Material Grade | Finish | Catalog Price USD |
|---|---|---|---|---|
| Two-piece single-pin clamp | 0.25″ to 0.75″ | 304 stainless | Standard catalog finish | 3.91 USD |
| Single-pin two-piece clamp | 1″ | Type 304 stainless steel | Standard | Approx. $4.91 |
| Two-piece single-pin sanitary clamp | 2 inch | 304 | Standard finish | Approx. $5.99 |
| Single-pin two-piece clamp | 2.5″ | 304 stainless | Standard catalog finish | Approx. $6.93 |
| Two-piece single-pin sanitary clamp | 3″ | 304 | Standard | Approx. $7.54 |
| Two-piece single-pin clamp | 4″ | 304 | Standard | $9.16 |
| Tri-Clamp ferrule | 2 inch with 1.125 inch OAL | 316L stainless | 32RA internal and external finish | Approx. $4.24 |
| Ferrule TC | 2″ size, 1.125″ overall length | Type 304 stainless steel | 32RA internal and external finish | Approx. $4.06 |
| TC sanitary ferrule | 3″ | 316L stainless | 32RA ID/OD | Approx. $6.15 |
| Double-bolt high-pressure clamp | One-and-a-half-inch size | Type 316 stainless steel | Polished | $12.93 |
| High-pressure sanitary clamp | 2 inch | 316 stainless | Polished sanitary finish | Approx. $14.62 |
| High-pressure double-bolt clamp | Three-inch size | Type 316 stainless steel | Polished sanitary finish | $20.26 |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to confirm availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Before purchasing, review product pages to cross-check pressure ratings, gasket materials, and fitting compatibility.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted search through a Sanitary Fittings Catalog will streamline procurement and reduce returns on critical process components.
Final Thoughts
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in various industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. These choices can significantly reduce contamination risk. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When selecting fittings, evaluate the material, finish, and connection type. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. High-pressure clamps should be used where necessary. Keeping gaskets, clamps, and ferrules consistent helps prevent leaks and simplifies maintenance. Proper installation and regular cleaning support the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and trusted sources reduce downtime. This preserves product quality in hygienic processing environments.
