Understanding the intermittent bonded ribbon production line
Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. provides equipment for producing rollable formats used in optical-fiber manufacturing. Buyers can compare the capacity of this setup against their intended product range because it is designed for 12- and 16-fiber ribbons. Factory space and installation needs may also be affected by the system’s split-type construction.
Intermittent Bonded Ribbon Fibers In Stainless Steel Tube Compact Fiber Unit
The stated construction speed for this particular production line is 600 m/min. The process combines fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up. When assessing suitability, the entire process matters rather than speed alone.
Factory utilities, reel requirements, available floor space, and installation conditions should be assessed before purchase. Ask the supplier for its documentation package and confirm the system’s suitability for your cable design and operating requirements. Addressing these details in advance may limit setup delays and support a smoother start.
Main Takeaways
- Designed for rollable 12- and 16-fiber formats.
- Listed speed: 600 m/min for this equipment.
- Uses a split-type construction.
- Curing, monitoring, pulling, and take-up stages are included.
- Check utilities, reels, installation needs, and supplier documents before buying.

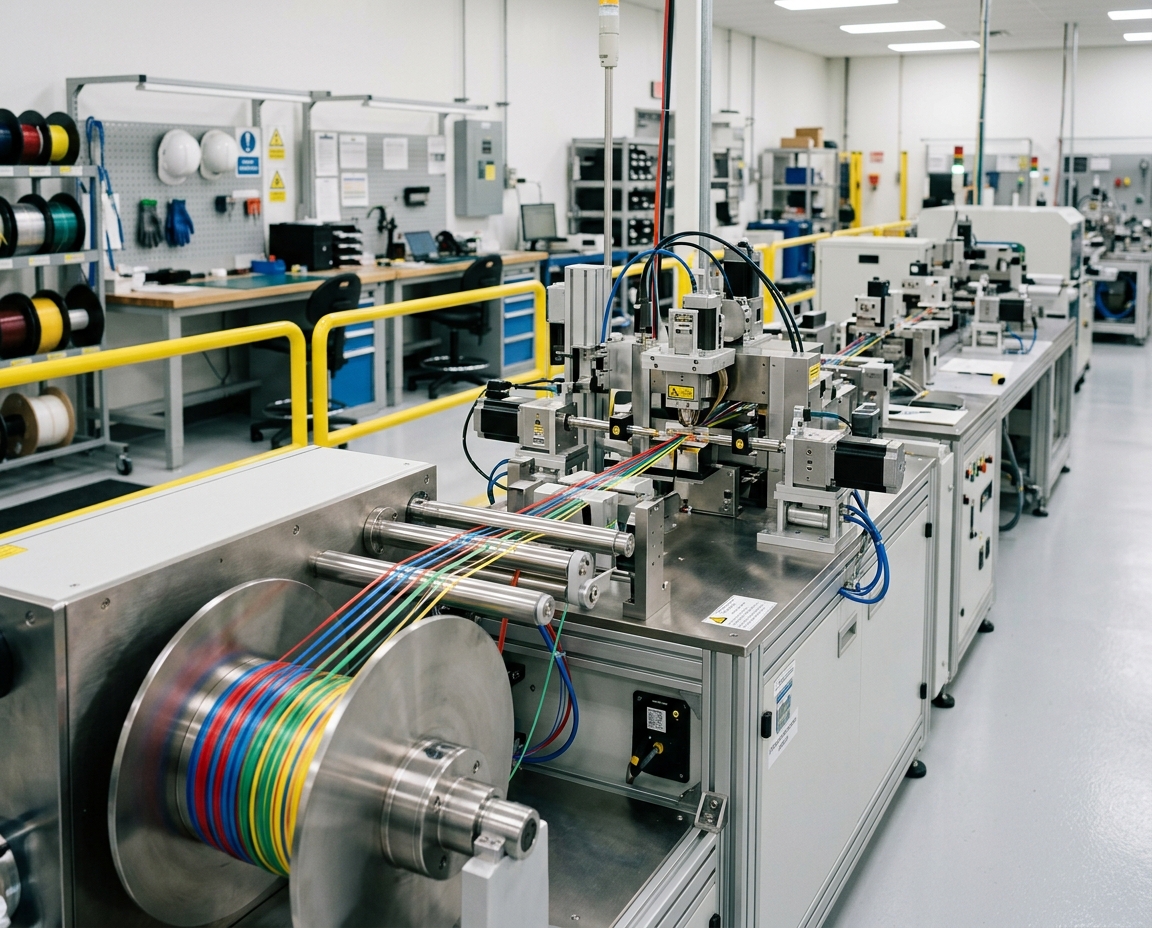

Intermittent Bonded Ribbon Production Line
Examine The Intermittent Bonded Ribbon Production Line
Three mold groups help form rollable IBR formats by positioning fibers for small adhesive dots. Operators can adjust the mold position from 0 to 15 mm to maintain consistent spacing and shape.
Make Rollable Fiber Ribbons Using Precision Bonding
The machine is supplied by a 16-spool pay-off, and guide rollers with U-shaped grooves help maintain the organization of each strand. Steady contact during processing is encouraged by the rollers’ hard-anodized surfaces. The adjustable valve arrangement supports 12F and 16F layouts, using 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to verify tension control settings that suit your particular cable design.
Run 12- And 16-Fiber Configurations At Up To 600 m/min
The stated construction speed reaches 600 m/min. The listed reel dimensions, Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm, correspond to pay-off reel options holding 25.2 km or 50.4 km of fiber. T-type and fiber-optic take-up reels are also offered for this system. Compare reel capacity with your operational requirements and expected changeover time.
Examine The Production Line’s Main Equipment And Controls
Consistent output depends on coordinating tension, resin placement, and UV exposure. Operators can use the system to match settings with the needs of their cable design and fiber ribbon.
Manage Fiber Tension, Resin Dispensing, And UV-LED Curing Together
Electro-pneumatic adjustment is used for each pay-off unit. Dispensers can run independently or in linked groups, with adhesive-dot spacing and counts configured through the interface.
Three pre-curing ovens support the mold groups ahead of UV-LED post-curing. Ask the supplier to check resin compatibility and the relevant operating conditions.
The Siemens PLC and touchscreen show lamp current and oven temperature, generate alarms, and support preset lengths. Before purchase, verify cabinet requirements and power supply needs.
| Stage | Technical Specification | Buyer check |
| Tension of fibers | Pay-off tension: 0.4 to 2 N with ±0.02 N; capstan tension: 50 to 500 g with ±5 g accuracy | Match settings to cable needs |
| Dispensing of resin | Individually operated or linked units with adjustable adhesive-dot spacing and count | Review interface settings |
| Curing With UV-LED | Three 800 W pre-curing ovens; one 6 kW post-curing oven; 395 nm ± 3 nm; at least 85% cure under stable, high-speed conditions | Verify compatibility with the resin |
| Monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; live lamp current and oven temperature, alarms, preset lengths | Verify cabinet and power supply requirements |
Prepare Line Configuration, Installation, And Operating Conditions
Before the machine is delivered, prepare a dedicated operating area. The optical fibre system requires an enclosed, clean, dry, and draft-free environment. Keep the temperature from 15°C to 25°C, with humidity at or below 85%. These conditions help safeguard fiber equipment and maintain precision during operation.
Review site utilities, electrical capacity, cabinet space, and cable design with your facilities team. The system needs nitrogen supplied at 7 bar and 99.99% purity, together with compressed air at 6 bar. A three-phase, five-wire electrical supply rated 380 V ±10% is required.
- Reserve room for the cabinet, components, resin, and access to service parts. Verify temperature settings and tension control before startup.
- Plan around the specified reel dimensions of Φ410 mm × Φ50.8 mm × 391 mm. The take-up unit accepts reels weighing up to 30 kg.
- Account for the main power feed-in cable when planning the site. Connection cables and cable trays are not included with the equipment.
Before ordering, confirm the supply scope, reel types, and installation requirements. This assessment can reduce setup time and help prevent later delays. Request supplier confirmation of suitable settings for your fiber and cable design, including lamp accuracy and operating conditions. A clear plan helps the production system begin operating more smoothly.
Obtain Pricing For A Ribbon Production Solution Matched To Your Needs
Manufacturers seeking rollable 12- or 16-fiber formats can assess this line at its stated speed of 600 m/min. When requesting a quote, share your fiber layout, output goals, cable requirements, reel preference, and factory conditions.
Confirm that the proposed system includes the 16-spool pay-off, UV-LED curing arrangement, take-up capacity, and relevant options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.
The documentation list covers operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. These documents can help assess setup time and ongoing service needs.
For pricing and configuration details matched to your production plan and site utilities, contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Before buying, confirm the scope of supply and replacement parts.
